| RD RD6006 RD6006W USB WiFi DC - DC Voltage current Step-down Power Supply module buck Voltage converter voltmeter 60V 6A aa |
The best product you are looking for is "RD RD6006 RD6006W USB WiFi DC - DC Voltage current Step-down Power Supply module buck Voltage converter voltmeter 60V 6A aa". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 20 |
| Product id | 4000282551930 |
| Vendor | RD official store |
| Category | Tools - Measurement & Analysis Instruments |
Buy Now On Aliexpress
Description :
Check This Video Reviews Operation video: New Products RD6006 RD6006W 60V/6A Power supply with PC software and APP by WIFI
Check This Video Reviews Exclusive RD RD6006 RD6006W USB WiFi DC - DC Voltage current Step-down Power Supply module buck Vo

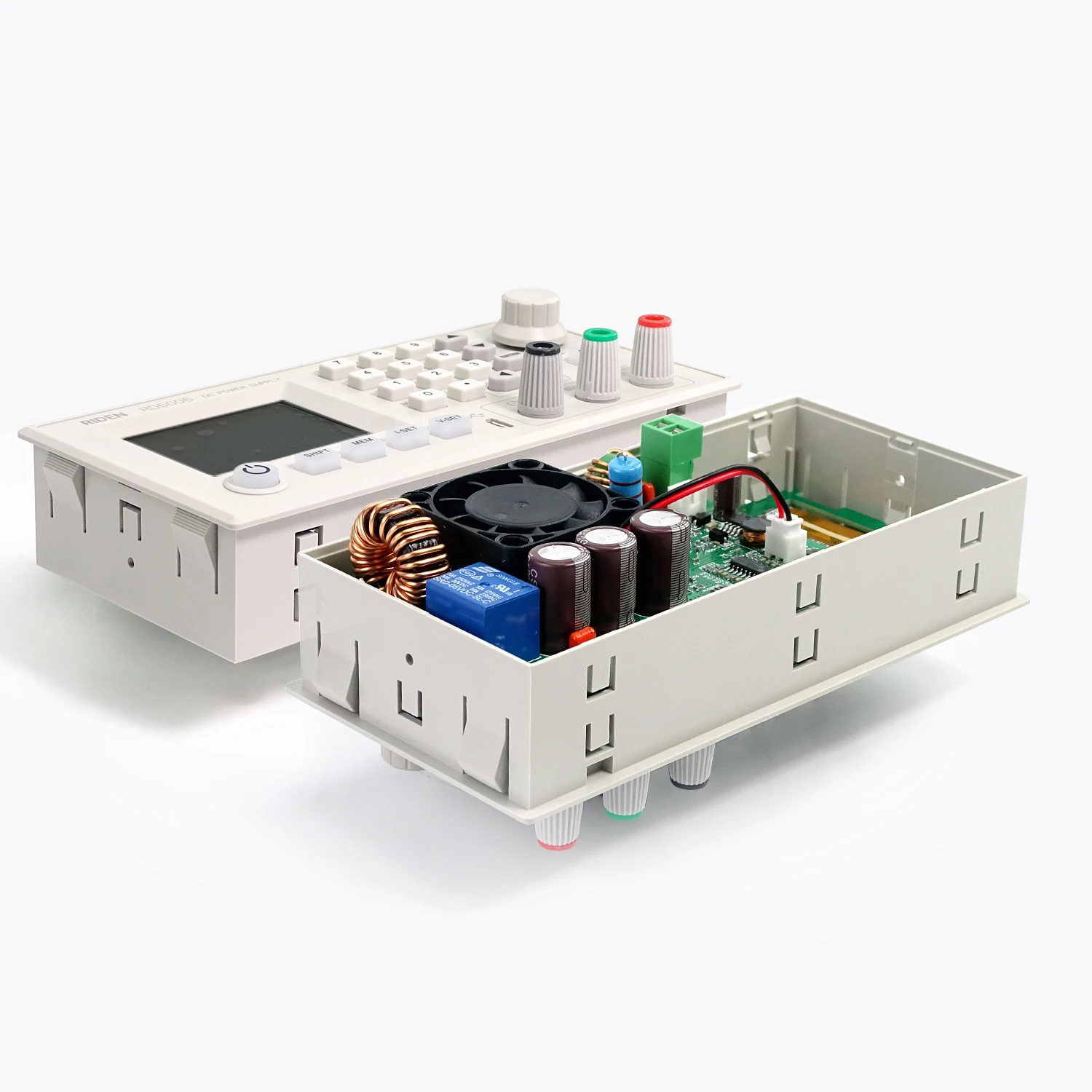

Constant Voltage and Constant Current

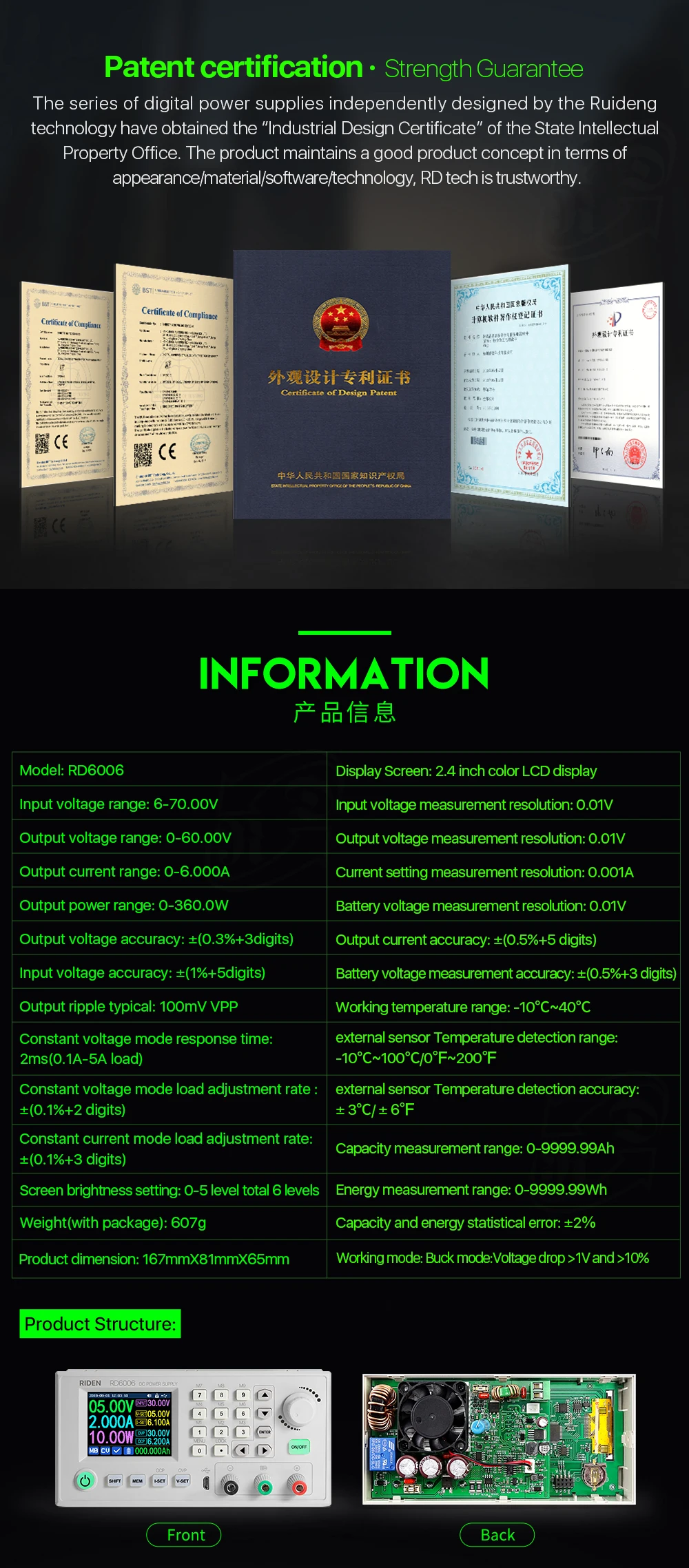

DC Power Supply Instruction
Model: RD6006/RD6006-W
All RD6006/RD6006W instruction and case installation instruction download Link : 1, RD6006(W) operation instructon in English and Russian, PC software instruction , APP instruction ,APP and PC software download link: A: Main download llink : https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v B: Mediafire:http://www.mediafire.com/folder/ssjf3s35ev68v/RD6006 C: Back up download link : http://www.ruidengkeji.com/rddata/RD6006/RD6006.rar 2, Android APP: search Search RdPower to download at Google Play, or download at file link https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v, Support android 5.0 and above phone IOS APP download: Search RdPower to download , support IOS8.0 and above phone 3, RD6006 and S06A case or S06D case assemble instruction : https://drive.google.com/open?id=1Bb6Mq3Mp7AGkd6yxwzPqwtv54dozZ4zR 4, RD6006/RD6006W test video: https://www.youtube.com/watch?v=pz0T9rD4Ij0 EEV blog Test Video : https://www.youtube.com/watch?v=0qjLx_HsKUQ&t=2s 5, RD6006/RD6006W Operation instruction video: https://youtu.be/fn6ROhGrLtI Instruction video for manual： a.section 1.4.2.1 Battery Charging Function Introduction: https://youtu.be/irTbqfqtgU0 b.section 1.4.2.2 Output Voltage and Output Current Setting: https://youtu.be/S6Kan66dNsk c.section 1.4.2.3 Data Group Quick Storage and Call out: https://youtu.be/eo5saPjOGpo d.section 1.4.2.4 Keypad lock and unlock: https://youtu.be/zxpmasJyQ6Y e.section 1.4.2.5 System Setting: https://youtu.be/Q9d3rIgIrOc f.section 1.4.2.6 Main Page Style Setting: https://youtu.be/f51VDiY2VHE g:section 1.4.2.7 Storage Data Setting: https://youtu.be/i1kTeurS13I h:section 1.4.2.8 System Information: https://youtu.be/Um4NQObeeJE i:section 2.1.2 IOS APP Download, Installation and Connection: https://youtu.be/nH2HYwop0TE j:section 2.4.2 IOS APP Operation: https://youtu.be/lXSw1CM9IY8 k:section 3.1.1/3.2.3.2 Android APP Download, Installation and Connection: https://youtu.be/QwyBEUCnp9c l:section 3.2.3.3 Anroid APP Operation: https://youtu.be/hqrF4keTfbE m:section 4.1/4.3.1 PC Software Download and basic operation: https://youtu.be/mjt1RMaah1Y o:section 4.3.2 Firmware Upgrade: https://youtu.be/NOoLfDw0DiY p:section 4.3.3 Calibration: https://youtu.be/c9sn1wY2mjE q:section 4.3.4 Logo Update: https://youtu.be/vuVhBsohWts r: RD6006 wifi connection Problem and solution: https://www.youtube.com/watch?v=7sTtc1kweJM 1, RD6006 series has two versions: RD6006 and RD6006-W,RD6006-W have WIFI board , RD6006 don't have . RD6006-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6006 don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support. 2, for PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. for APP and PC software, please download first before buying , if you can download and install, you can make order, or else stop buying. 3, there are 2 kind case, S06A case and S06D case, only case, not containing any power supply. some picture show installation finished by RD6006 , switch power and case . For S06A case, it is just case, not conntaining any power supply, but it is suitable for RD6006/RD6006W and AC-DC 400w 60V switch power supply, you can buy them seperately to assemble easy. assemble instruction in English and Russian : https://drive.google.com/open?id=1Bb6Mq3Mp7AGkd6yxwzPqwtv54dozZ4zR . S06A assembly video:https://www.youtube.com/watch?v=RMRuErdv2LM For S06D, you only put RD6006, there is not place to put others. assemble instruction : https://drive.google.com/open?id=1Bb6Mq3Mp7AGkd6yxwzPqwtv54dozZ4zR Technical parameters ·keypad + encoder potentiometer combination adjustment ·2.4 inch HD color screen ·Battery charging special interface ·Data quick storage & recall ·New PC software ·Wi-Fi connection, Phone APP control NOTE: Power source input interface must be connected to 6-70V constant DC power source. The external sensor cable (as shown on right) must be connected to the external temperature sensor interface. The fan interface cannot be connected to other fans. When the output current is higher than 4A or the system temperature higher than 45℃, the fan start to work, when the temperature is less than 40℃ and output current lower than 3.9A, the fan will stop working. When the system temperature is higher than 80℃, the output will be shut down because of OTP. CR1220 is the clock battery(Please prepare by yourself), communication interface is a special interface, please don’t connect to other modules or cables. You can see the Wi-Fi module(RD6006-W contains) and RS-485 module in the picture below. If you need RS-485 for industrial batch test and it is not on sale now, if you want to use that, please contact us. After power-on, the boot image is displayed first, then enter the main page. In the menu operation, the icon in red or cursor is the currently selected menu, the icon in blue is the unselected menu, press ENTER to confirm, press the encoder potentiometer to cancel or return, press the direction key to move the cursor or switch menu, rotate the encoder potentiometer to change the setting, the settings will be automatically saved when returning from the menu page. Press and hold the 0 button and power on to restore the factory settings, press and hold the 1 button and power on to restore the factory calibration value, press and hold ENTER and power on to enter the boot mode. After power-on, at battery related information display area, external temperature, capacity and energy will loop display. When there is output current: capacity, energy automatically Accumulated, and automatically cleared after shutdown. The green terminal is connected to the positive pole of the battery, and the black terminal is connected to the negative pole of the battery. After the battery is correctly connected, the battery charging indicator turns red and the battery is connected. Press ON/OFF to start charging, the battery charging indicator turns green. When the actual output current is lower than 10mA, the output will be shut down automatically. Battery with protection board may not be charged. The charging voltage and current should be set on your own. It is strongly recommended to use the original charger to charge the battery. There is a risk of fire and explosion during the charging process. Non-professionals should not operate. Press “I-SET” button to set the output current value, you can use encoder potentiometer to adjust the output value directly, press the direction button to move the cursor. Of course you can use keypad to set the value, and press “ENTER” to confirm. If you set the wrong value, you can press encoder potentiometer to cancel. Press “V-SET” button to set the output voltage value, the operation method is similar to output current setting. Press “SHIFT”+ “I-SET” button or “SHIFT”+ “V-SET” button to set the over current protection/ over voltage protection value. The operation method is similar to output current setting. M0 is the default data group when RD6006 is powered on, manually modify the settings and automatically remember to M0 after confirmation. Press “MEM”+keypad button 1-9, you can store the output voltage value, output current value, over voltage protection value, over current protection value into the corresponding data group(as shown above), then press “ENTER” to confirm, or press the encoder potentiometer to cancel. Press “SHIFT”+keypad button 1-9 to quick call out the saved data(as shown above). Press “ENTER” to confirm, or press the encoder potentiometer to cancel. Press “SHIFT”+”LOCK” to lock or unlock the keyboard. And the keypad will be automatically locked when communication starts, there will be Press “SHIFT”+”MENU” to enter the system setting menu as shown on the right, press “ENTER” to enter the menu, press direction button to select option, the option in red is the option be chosen, rotate the encoder potentiometer to change setting. Turn on the “Call OK”, a confirmation window will pop up when you quick call out a data group. If you turn it off, the setting values will be modified directly when you call out a data group. Turn on the “Call out”, the output will be turn on automatically when you call out a data group. If you turn it off, the output will keep the previous status. Turn on the “Power On”, it will turn on the output automatically when start. If you turn it off, the output will keep OFF status when started. Turn on the “Beeper”, you will hear button tune when press the button, and there will be Turn on the “Logo”, it will display Logo first and then enter the main page when boot RD6006. If you turn it off, you will enter the main page directly. The system language supports Simplified Chinese and English for the time being; the screen brightness can be set from level 0 to level 5; The communication interface can be set to USB, Wi-Fi or TTL, USB interface is the Micro-USB interface on the front panel interface, you can see the You can press SHIFT + MENU to enter the system setting menu, and then press the right button to enter the main page style setting menu as shown above. Press ENTER and then use direction button to set classic style or curve style. The pattern in red is the style be chosen. The classic style is the system default style, and the large font shows the voltage, current and power. The curve style is as shown above, the color of the three curves corresponds to the output voltage, current and power. D is the scale of the ordinate, Press “ENTER” to start or pause the curve, and the rotate encoder potentiometer to scale the ordinate of the curve. You can press SHIFT + MENU to enter the system setting menu, and then press the right button twice to enter the data storage setting menu as shown below, press ENTER to enter the setting menu, the icon in red is the chosen data group, press the direction button to select data group number. Press “I-SET” button to set the storage output current value, then rotate the encoder potentiometer the adjust the output value, press the direction button to move the cursor. You can also set the value with keypad, press ENTER to confirm. If you set the wrong value, you can press the encoder potentiometer to cancel. Press “V-SET” button to set the storage output voltage value, the operation method is similar to storage output current setting. Press “SHIFT”+ “I-SET” button or “SHIFT”+ “V-SET” button to set the storage over current protection/ storage over voltage protection value. The operation method is similar to storage output current value setting. Press encoder potentiometer to return, and the data will be automatically saved. You can press SHIFT + MENU to enter the system setting menu, and then press the right button three times to enter the system information menu as shown above. You can view the SN number, firmware version and system temperature here. IOS APP Instruction can be found in the PDF file Note: This product mobile APP function only supports Android 5.0 system or above. During the APP installation process, it will apply for location service. Please agree and turn on the location service. After downloading the mobile APP zip-file, please install the APP in file manager. Don’t install or remove Wi-Fi module when the power is on, or else it will be damaged.This instruction is made for version 1.0.3, there will be little difference between different versions, we do recommend you to download the latest App for better experience. After the installation, you can see the icon as shown below: Click the APP icon, After the APP starts, it will automatically detect whether there is a updated version, and it will remind you by popping the window. When updated to the latest version, the main interface of APP as shown below in Picture 1: BD: call out/ shut down sidebar BE: connection button BF: export data to mobile phone folder (Mobile phone memory or SD card root directory, repeated writing, can directly generate graphs in Excel), and can share files to other APP. Connect Wi-Fi for the first time, the RD6006 and the mobile phone are placed close to the 2.4G router (the mobile phone must also be under the same 2.4G network, and the router must disable the AP isolation function). Set the communication interface to WIFI, restart, RD6006 will wait for the phone to connect as shown in Picture 5. Presses “BD” to call out the sidebar, clicks on the “Network distribution” as shown in Picture 3. There will be “Initializing...” displayed on the screen as shown in Picture 4. When power on RD6006, it will connect Wi-Fi first, and then detect if it can be connected to APP as shown in Picture 8(the APP must already be running ). If the IP address of the phone has changed, you need to press the “left direction” button and then press “ENTER” button to reset the net, repeat 2.2.3.1 operation. Click “BL” to set the output voltage, and use the wheel “BU” to adjust the value, the “BR”, “BT” to change the position of cursor, click “BS” to set the parameter. Click “BF” to exports the voltage-current curve to excel file, up to 24 hours document can be recorded. NOTE: 1. There are many kinds of Android phone, so the user interface maybe different on some brand phones or different scales of the same brand. 2. Application permission requirements, allow the necessary permissions when the APP is installed (allow background running, using Bluetooth, operation on the folder, reading the application list, etc.) and also set the permissions of the APP after installation: Allow background running, never shut down when lock screen, allow self-starting(it is used to prevent the system from forcibly exiting the APP when recording data), etc. Requirement: the PC system must be Win 7 or above, and the computer has Internet connection. This PC software is designed by Hangzhou Ruideng technology CO., LTD, it has no virus, if your anti-virus software prompts for a virus warning, please allow all its features, otherwise it will affect the normal operation of the software. RD6006 digital power supply file download link: https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v Unzip files and double-click CH341SER.EXE first to install the driver, operate according to the installation, click [Next] until succeed. Double click RidenPowerSupply.EXE to install the PC software, and it will automatically detect if .NET Framework 4.7.2 is installed, if not, .NET Framework 4.7.2 will be installed automatically. Double click Riden Power Supply on the desktop to enter the PC software. Choose the right communication port, baud rate, slave address(default 001), click “CONNECT” to start communication. If the communication succeeds, the power supply button will be locked automatically, the buttons will automatically unlock after 3 seconds of accidental disconnection, and the “CONNECT” turns to “DISCONNECT”; Click “ON” to turn on the output of the power supply, and it will turn to “OFF”. The PC software interface mainly has basic functions, firmware upgrade, Logo upgrade, version update detection and language setting... BF: Voltage-Current Curve BG: Battery information/Data Group Quick Call Out BH: Calibration BI: Input Voltage BJ: Actual Output Voltage BK: Actual Output Current BL: Actual Output Power BM: System Temperature(℃) BN: System Temperature(℉) BO: Constant Voltage/ Constant Current Status BP: Protection Status Indication BQ: Screen Brightness Setting BR: Synchronize System Time BS: Output Current Preset value BT: Output Voltage Preset value BU: Firmware Version BV: Serial Number BW: Product Model The basic functions of PC software: voltage/current preset, data group quick call out, calibration fine tuning, brightness setting, voltage and current curve exporting. You can rotate the wheel or type numbers to set the voltage and current, the graph above the button shows the real-time voltage and current curve. Press and hold “ENTER” and power on RD6006, enter the boot mode, then connect it to computer, there will be “boot mode” in the mode information text box, then click “FirmUp”, a firmware upgrade prompt will pop up on the interface, and click “Upgrade Now” to upgrade. (You can upgrade the firmware under the APP mode, if it can not be started up normally, you should press and hold the “ENTER” button and power on, upgrade it under boot mode.) During the firmware upgrade process, the interface is displayed as follows: The calibration fine-tuning function needs to be operated by a professional electronic person who has more than five and a half multimeters. It will change the system setting, incorrect operation may exceed the hardware limit and cause damage, and the resulting damage is not covered by the warranty! The limit error of the product is generally much smaller than the nominal error, when the error is close to or even higher than the nominal error, you need to check if the measuring instrument is accurate. Click “Calibration Fine Tuning” and enter the password “168168”, you can enter the Calibration Fine Tuning page(if you enter the password, By default you have accepted the above red letter agreement ). It can read the calibration data after connection, click the arrow to fine tuning the data. According to the linear function y=kx+b, the constant b is equivalent to the zero value, the slope k is equivalent to the proportional value, adjust this two values so that the the data will be close to the real value. Set the output voltage at 1V, adjust the output voltage zero point to make the multimeter display close to 1V, then set the output voltage at 30V, adjust the output voltage proportional value to make the multimeter display close to 30V. In the same way you can set 0.1A and 3A output current to calibrate the the zero point and proportional value of the output current. Set the output voltage at 1V and calibrate the actual output voltage zero point to make the actual output voltage displayed on RD6006 close to the value on multimeter. You can set 30V and calibrate the proportional value of actual output voltage. In the same way you can set 0.1A and 3A to calibrate the zero point and proportional value of the actual output current.(This section does not provide technical support. If you do not understand, please check the related information). Click “LogoUp”, a Logo upgrade prompt will pop up on the page, please select a picture with a size of 320x240 and a resolution of 96dpi (At present, only fixed-size image updates can be used at the moment, and we will add new function that you can use any size image and the image will be cropped and imported later. Some logo samples can be tested in the installation package) Click “LogoImport” and RD6006 will reboot automatically. Click “CheckUp”, the software will automatically detect if there is a new version, if so, a update prompt will pop up on the interface. Click “Language”, a language setting prompt will pop up on the interface, you can choose Simplified Chinese or English. Click “About”, you can check the version number, publish time and copyright Information. 1. Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don't be overly picky). as shown in picture 1，if you care, please don't buy this product 2. It is recommended to use fork terminal cables or lantern head cables as output cables, and you cannot use stackable connector(it may cause poor contact). Never insert the multimeter probes to the terminals(it will damage the terminals). as shown in picture 2 3.when the button light is on, when the surrounding environment is dark, it will be found that the adjacent buttons have weak light, normal use has no effect. as shown in picture 3
4, for input AC-DC switch power supply, we recommend 400W 60V switch power supply (S06A case leave fix hole size for this version), the following 400W 60V switch power supply is our recommend, but just recommend, not provide any quality guarantee and technology support, you can contact the seller to ask. S-400-60 400W 60V AC-DC switch power supply link: https://www.aliexpress.com/item/4000285813894.html (RECOMMEND and TESTED) Note: Please use the power supply we recommend or some qualified brand power suuply to power on RD6006, Poor quality power supplies may occasionally provide over-voltage when turned on, and the resulting damage must be borne by the customer.

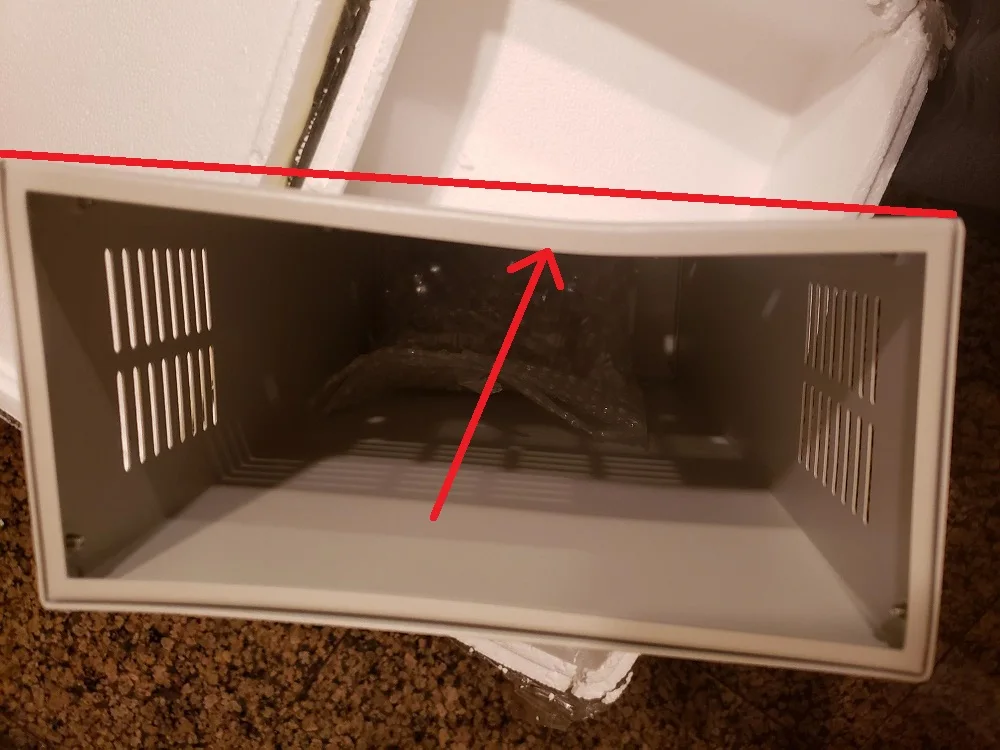

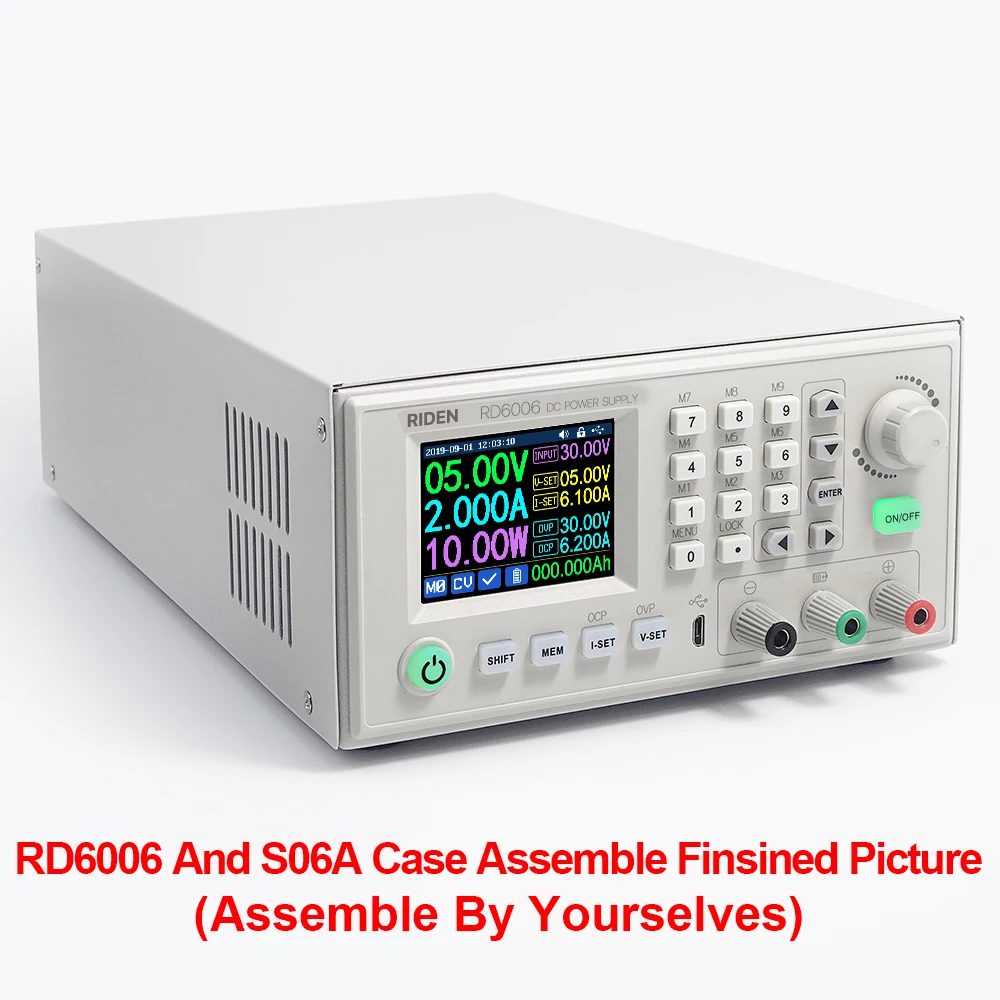

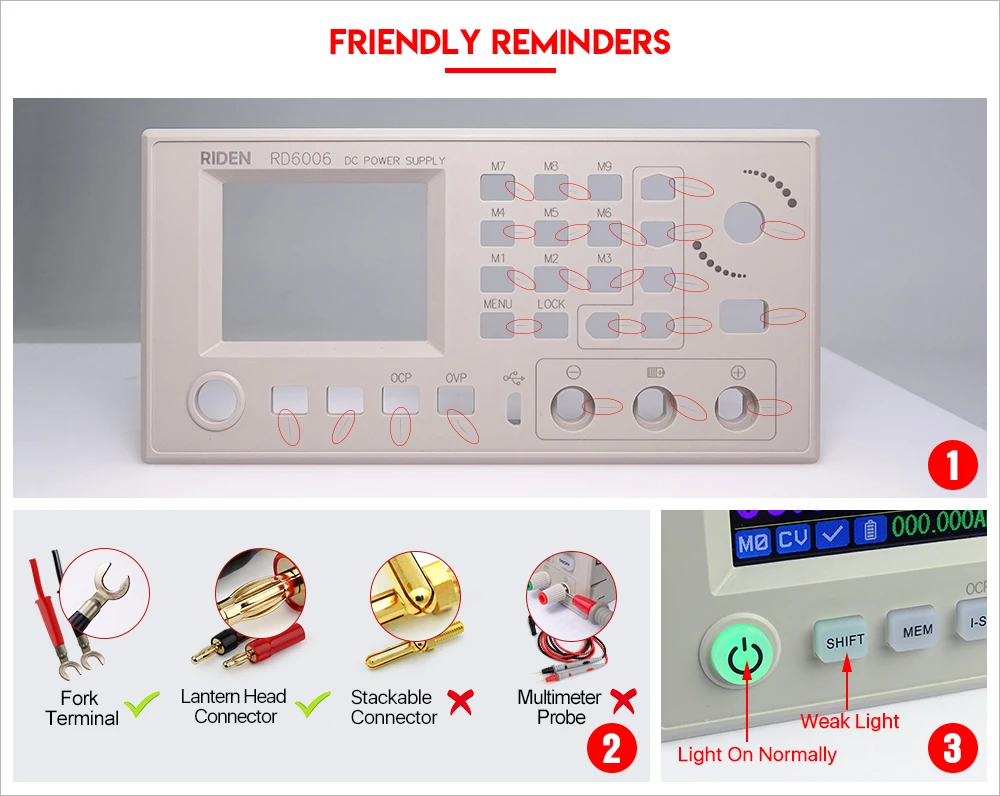

5, for APP and PC software, before buying, please download and install first, if it can't be install , stop buying. because some PC language and phone system problem, it can't be install. so please check first before buying. 6, for S06A case, durning the shipping, maybe the case side wiil be a little deformation (just like picture ), you can use your hand to adjust, that's ok, if you mind this , please stop buying.
" width="500" height="333" title="" alt="">
7,we show some data you want to see about RD6006, battery protection, output accuracy, output ripple, and working temperature:https://www.youtube.com/watch?v=pz0T9rD4Ij0 8.If RD6006W can connect to the hotspot shared by the mobile phone but cannot connect to the router, you need to shut down the client isolation/ AP isolation and WMM function.
1.1 Core Function

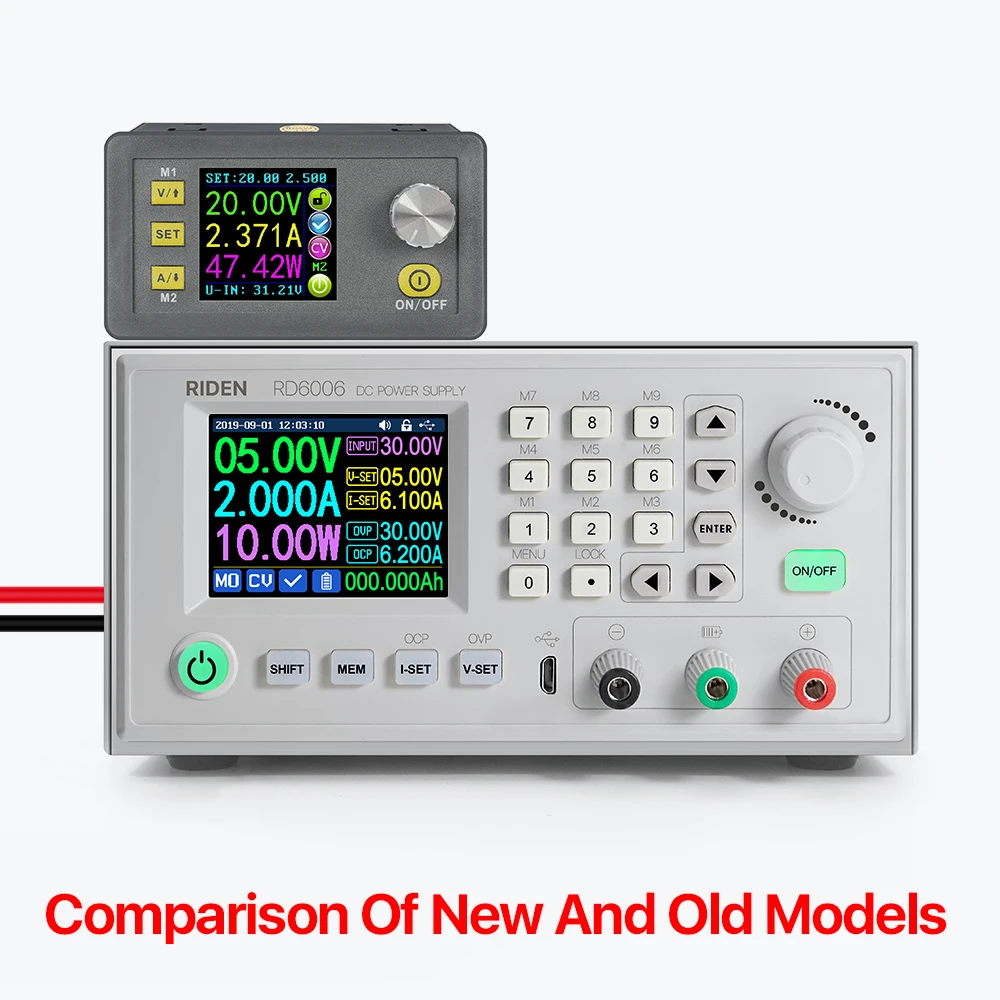

1.2 Panel Description

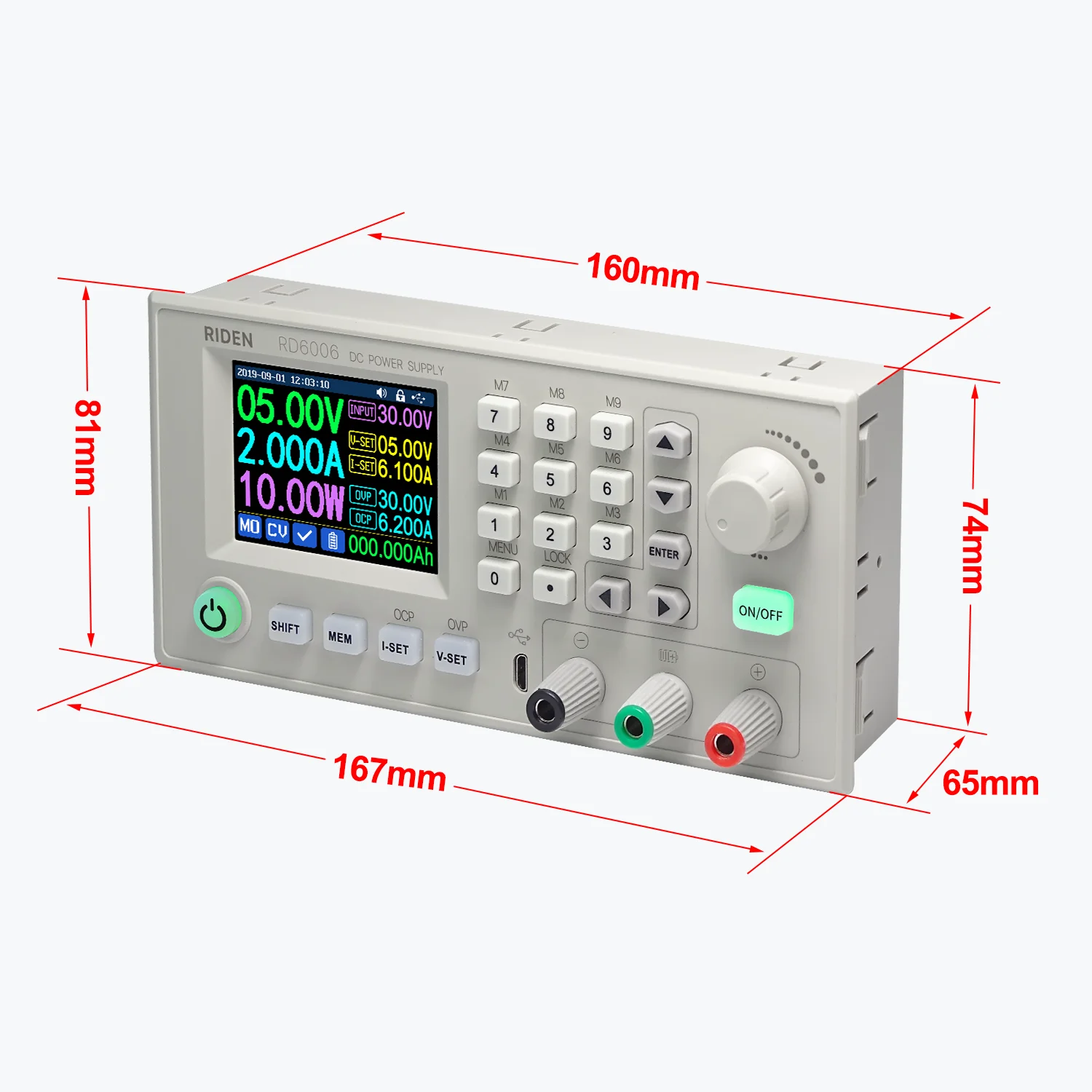

1.2.1 Front panel
1.2.2 Back panel
1.3 Operation Introduction
1.3.1 Main Page
1.3.2 Operation Instruction
1.3.2.1 Battery Charging Function Introduction
1.3.2.2 Main Page Output Voltage and Output Current Setting

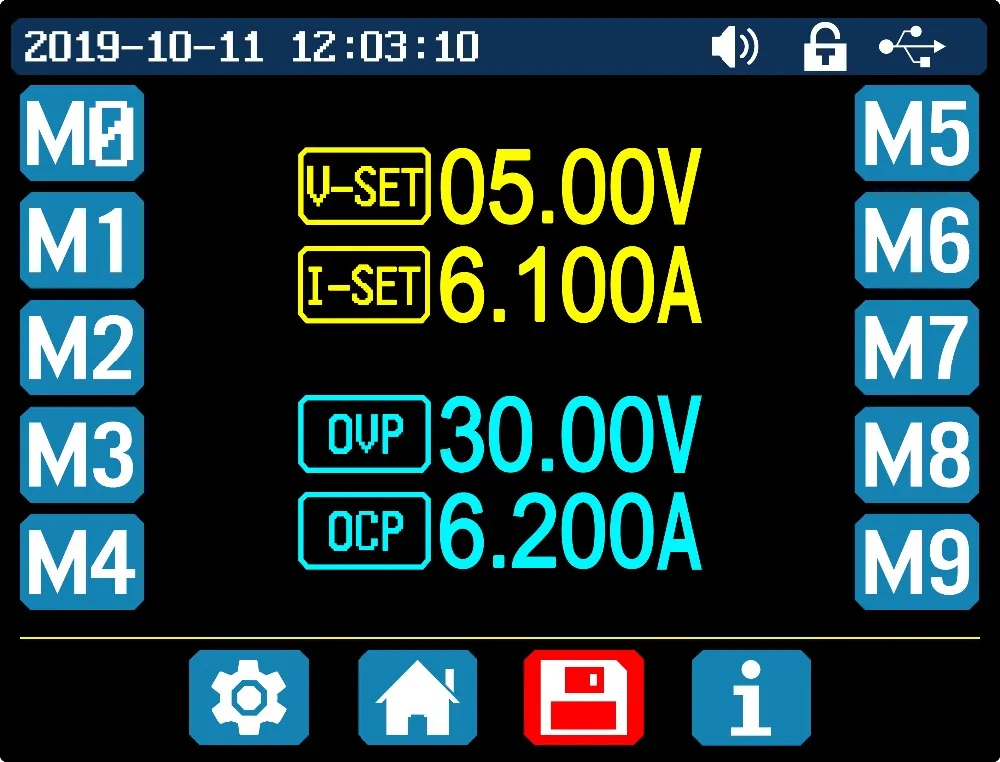

1.3.2.3 Data Group Quick Storage and Call out
1.3.2.4 Keypad lock and unlock
displayed on the top(can not unlock manually ), and the keypad will be automatically unlocked when the connection disconnected manually, there will be " width="500" height="333" title="" alt="">
displayed, the keypad will be automatically unlocked when the connection disconnected abnormally, and the power off button can be used when the keypad is locke" width="500" height="333" title="" alt=""> 1.3.2.5 System Setting
on the top. If you turn it off, there will not be button tune when press the button, and there will be " width="500" height="333" title="" alt="">
on the top" width="500" height="333" title="" alt="">
Wi-Fi interface is the Wi-Fi module connected to the communication interface, you can see the
TTL is not available for the time being; When the interface is changed, you need to reboot RD6006 to apply the modification. The baud rate can be set 9600/19200/38400/57600/115200 under USB mode; The Baud rate under Wi-Fi is fixed at 115200. Device address can be set from 001-255. You can set the date and time by rotating the encoder potentiometer, the setting will be saved immediately after modification. Please do not set a wrong time, it may cause the date to not be automatically accumulated. Press the encoder potentiometer to return, and the set value will be saved automatically. Measure is the refresh rate of read back voltage and current in the main page, you can set it to low, middle and high. Press encoder potentiometer to return and it will be automatically saved.
1.3.2.6 Main Page Style Setting
" width="500" height="333" title="" alt="">
1.3.2.7 Storage Data Setting
" width="500" height="333" title="" alt="">
1.3.2.8 System Information
Android APP Instruction
3.1 Mobile Phone APP installation
3.1.1 APP download:
You can download the RD6006 APP zip-file in this URL:https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v
3.2 Installation Introduction
3.2.1 APP Start-up
3.2.2 APP Interface Display
3.2.3 APP Connection and Operation
3.2.3.1 Network Distribution
3.2.3.2 Proper Wi-Fi Connection
3.2.3.3 APP Functions
PC Software Installation and Operation Instruction
3.1 Software Installation
3.1.1 Unzip Files
3.1.2 Software Installation
3.2 Software Operation
3.2.1 Installation Succeed
3.2.2 PC Software Operation Instruction
3.3 Functions Introduction
3.3.1 Basic Functions
3.3.2 Firmware Upgrade
3.3.3 Calibration Fine Tuning
3.3.4 Logo Update
3.3.5 Version Update Detection
3.3.6 Language Setting
3.3.7 About
