| 1800W psu 12v power supply Platinum Antminer APW3 Mining Power Supply for Antminer Miner mining rig A6 A7 ANT asic S9 T9 S7 L3 |
The best product you are looking for is "1800W psu 12v power supply Platinum Antminer APW3 Mining Power Supply for Antminer Miner mining rig A6 A7 ANT asic S9 T9 S7 L3". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 35 |
| Product id | 32855404666 |
| Vendor | TIANFENG Store |
| Category | Computer & Office - Computer Components |
Buy Now On Aliexpress
Description :
Check This Video Reviews Bitmain Antminer APW3++ Power Supply Review
Check This Video Reviews 1600W Fully Modular Bitcoin Power Supply for gaming

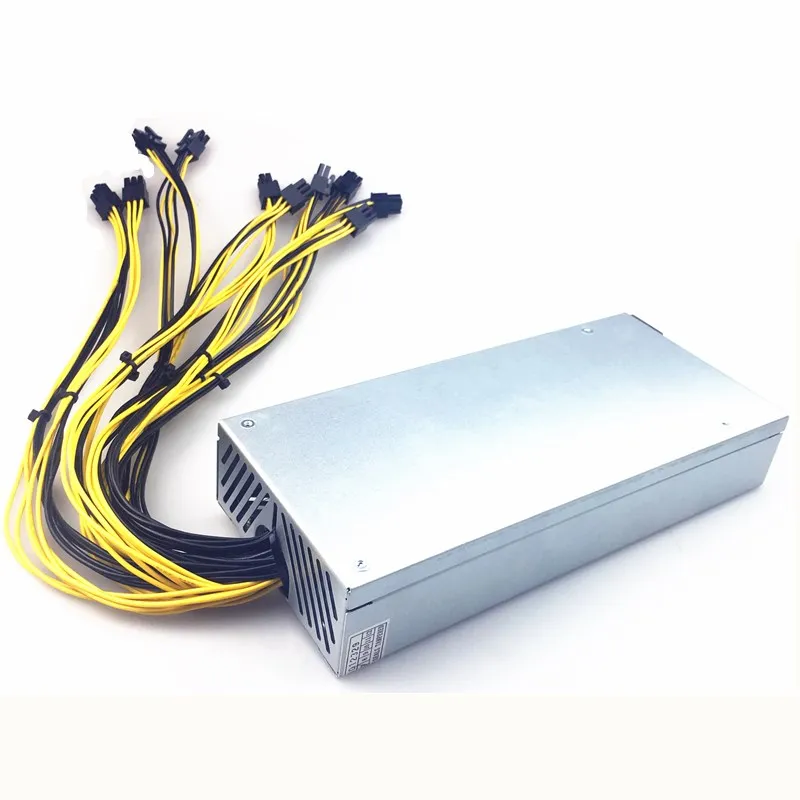

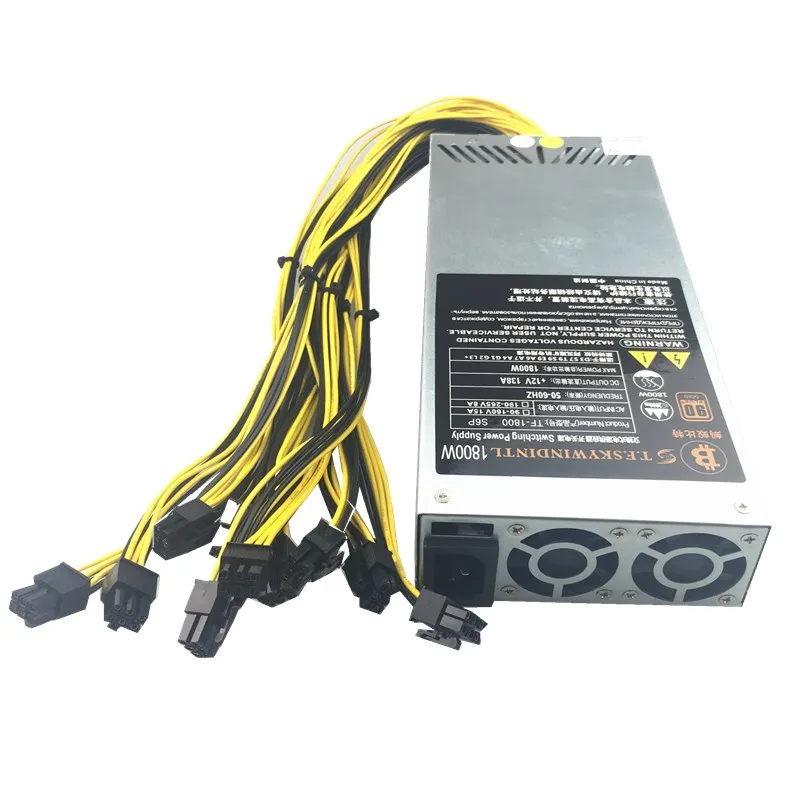

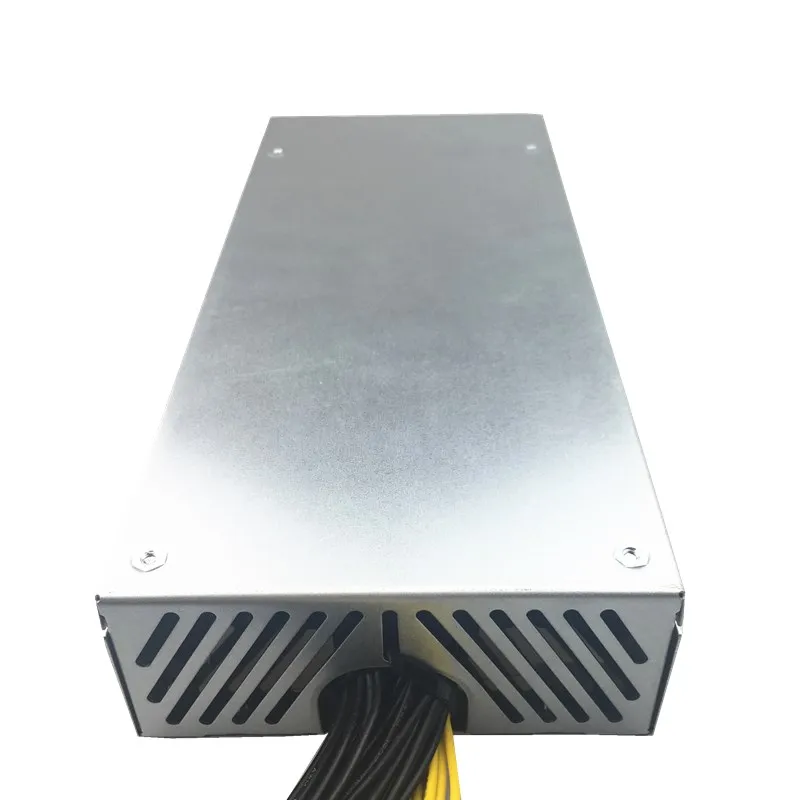

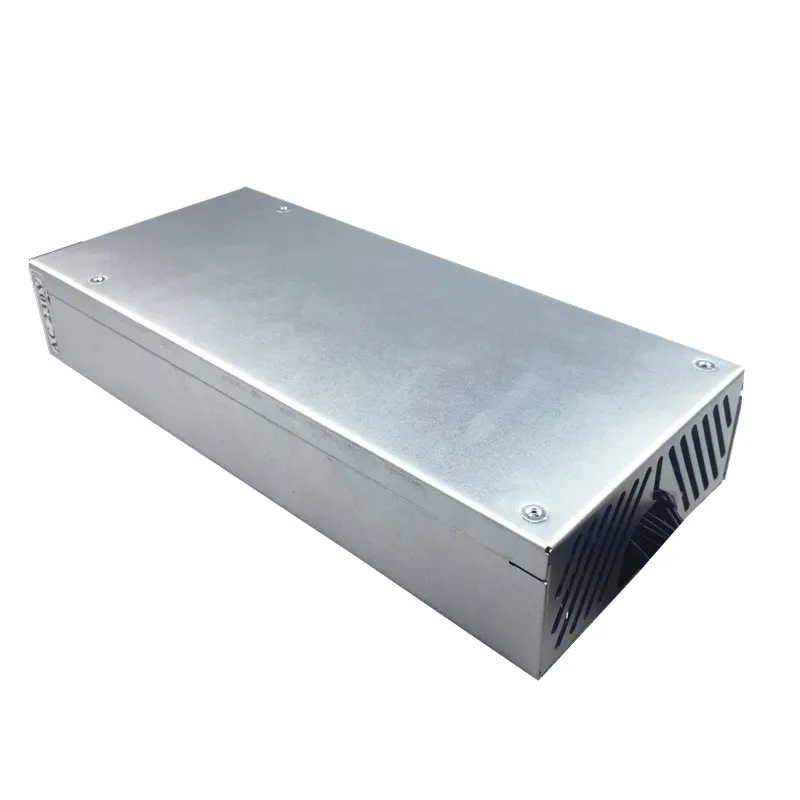

1800W psu 12v power supply Platinum Antminer APW3 Mining Power Supply for Antminer Miner mining rig A6 A7 ANT asic S9 T9 S7 L3
1800W Special Power Supply For S7 S9 Mining Machine
Over-Temperature / Current / Voltage / Power Protection, Under-Voltage Protection, and Short Circuit Protection
Note：The Voltage Range is AC 190~265V，please check details before you buy .
Model: TF-1800-L-S6P
Shell Material: Aluminum
Power Cord Length: 1.5 Meter
Connectors: 6 PIN X 10 Pcs
Number of Interfaces:10
Fit For: S9(12.5T/13T/13.5T/14T) S7 Ant Series Mining Machine
Input Characteristic
Voltage Range: AC 190~265 V
Input Rated Voltage: AC 200~240 V
Starting Inrush Current: ≤80 A
Maximum Input Current: ≤15 A
Efficiency: ≥93%
Output Characteristic
Output Rated Voltage:DC 12.25 V
Load Regulation: ≤±2%
Linear Regulation: ≤±1%
Rated Output Power: 1800W(Max)
Output Current: 0~150 A
Output Ripple And Noise: ≤120 mVp-p
Drive And Shut Down Overshoot Range: ≤±5%
Rise Time: ≤100 ms（230 V rated load test）
Boot Time: ≤3 S（230 V rated voltage test）
Hold Up Time: ≥10 mS（230 V rated voltage test）
Protection Characteristics
Input Under-voltage Protection Point: ≤180 V
Input Under-voltage Recovery Point: ≤185 V
(Can automatic recovery, the backlash is not less than 5V）
Input Over-current Protection: Yes
(The over-current point is between 140~160A)
Output Short-circuit Protection: Yes
(Recovery after removal of short circuit)
Input Over Temperature Protection: Yes
(When the temperature switch is higher than 100 degrees, protect, turn off the 12V output, and the temperature can be restored automatically below 65 degrees centigrade.)
Environment Conditions
Operating Temperature: -40~+50℃ Full Load (Typical value is 25 ℃)
Storage Temperature: -40~+85℃ (Typical value is 25 ℃)
Operating Humidity: 5~95% Frost-free
Storage Humidity: 0~95% Frost-free
MTBF: 50000 H (Typical value is 25 ℃)
Altitude: ≤ 5000 m (Normal Work)
Heat Dissipation Mode: Air Blast Cooling
Package Included:
1 x Mining Power Supply
