| RD DPS3005 Communication Function Constant Voltage current Step-down Power Supply module Voltage converter LCD voltmeter 30V 5A |
The best product you are looking for is "RD DPS3005 Communication Function Constant Voltage current Step-down Power Supply module Voltage converter LCD voltmeter 30V 5A". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 20 |
| Product id | 1000004279003 |
| Vendor | RD official store |
| Category | Tools - Measurement & Analysis Instruments |
Buy Now On Aliexpress
Description :

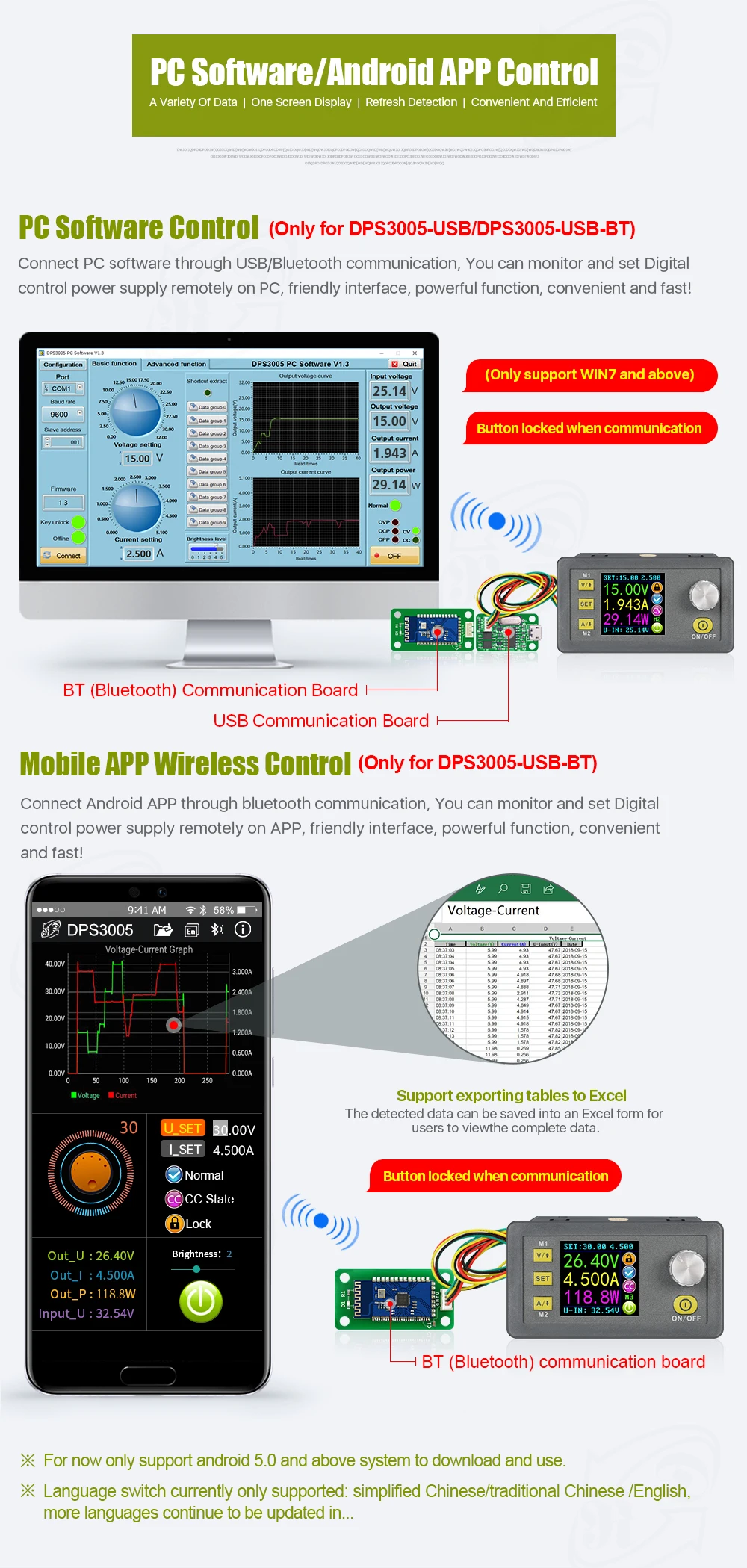

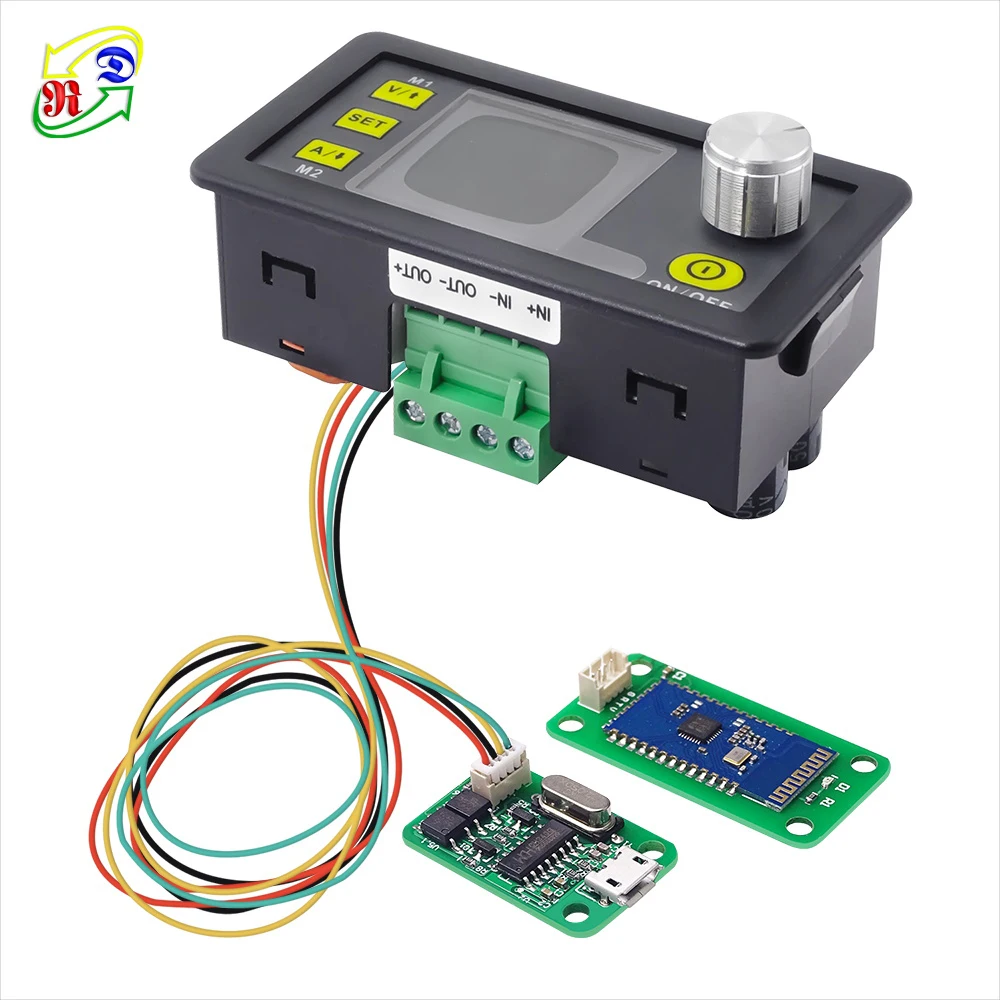

Check This Video Reviews RD DPS5005 Commnunication version Connection with PC by USB and Bluetooth
Check This Video Reviews Ordinary Products Maintenance- RD DPS3005 DC-DC power supply : no output
Technical Support nd16363955656717
All our products are devised and produced by ourselves. So believe that our quality, price and service will definitely give you satisfaction!
Constant Voltage Constant Current
Programmable Control Supply Power Module
Product model: DPS3005

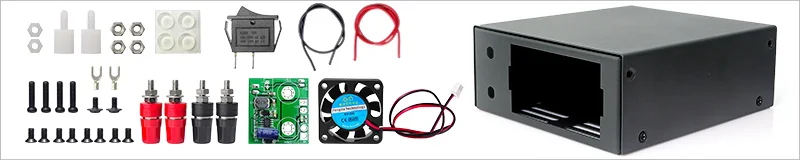

Metal case, please choose “choice 1” (it is suitable for DPS3005,DPS3005-USB,DPS3005-USB-BT ): https://www.aliexpress.com/item/1000004752402.html https://www.aliexpress.com/item/4000285813894.html

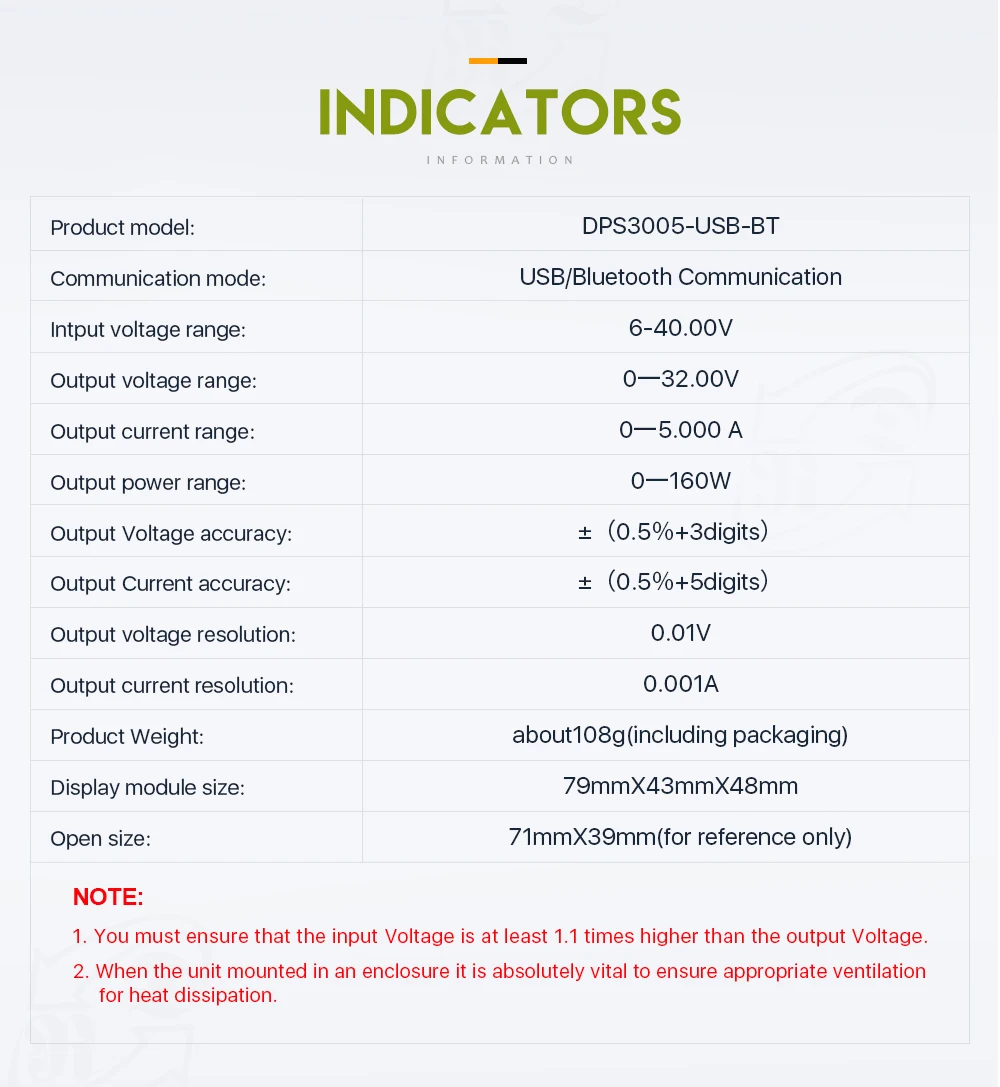

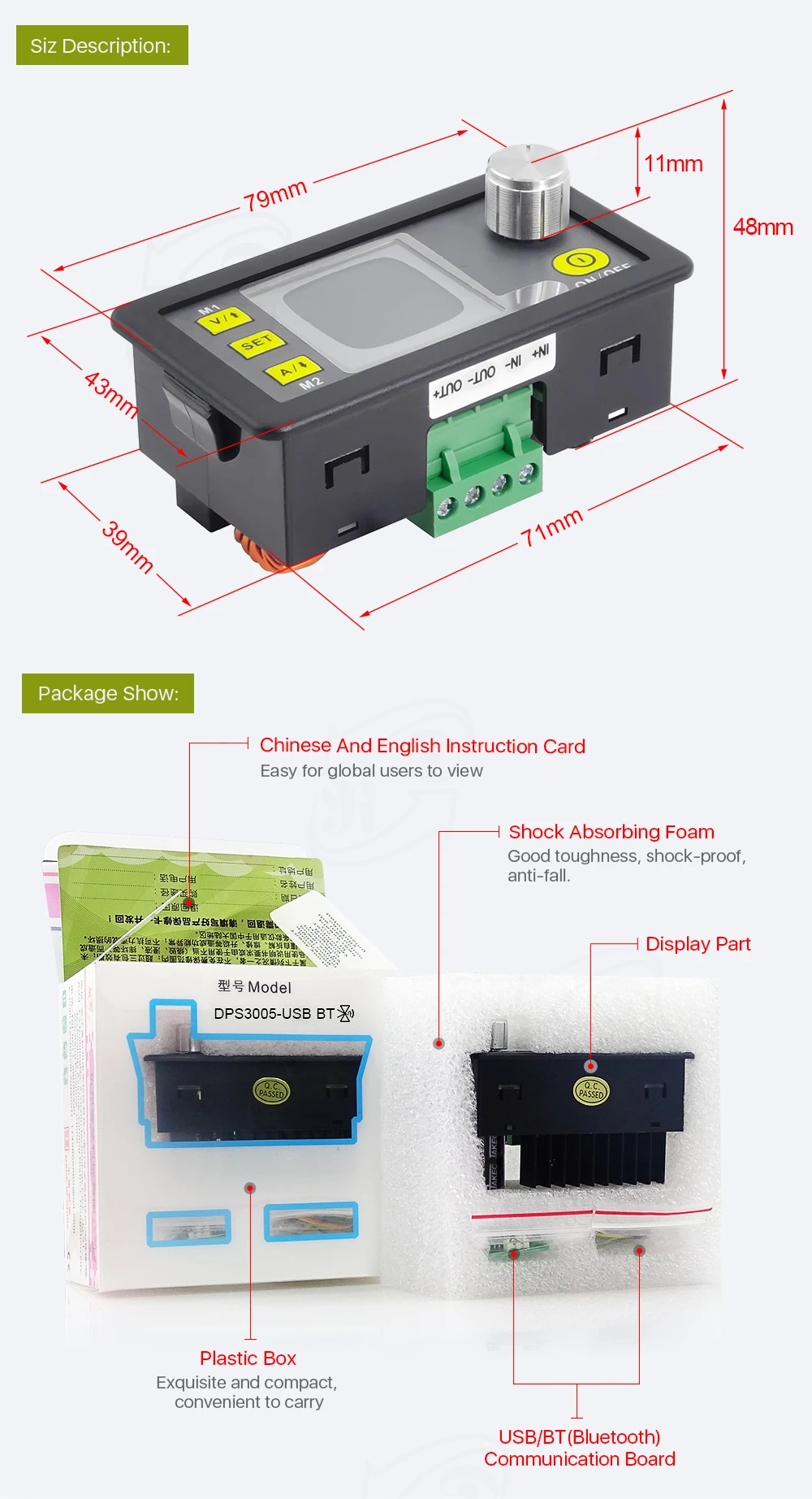

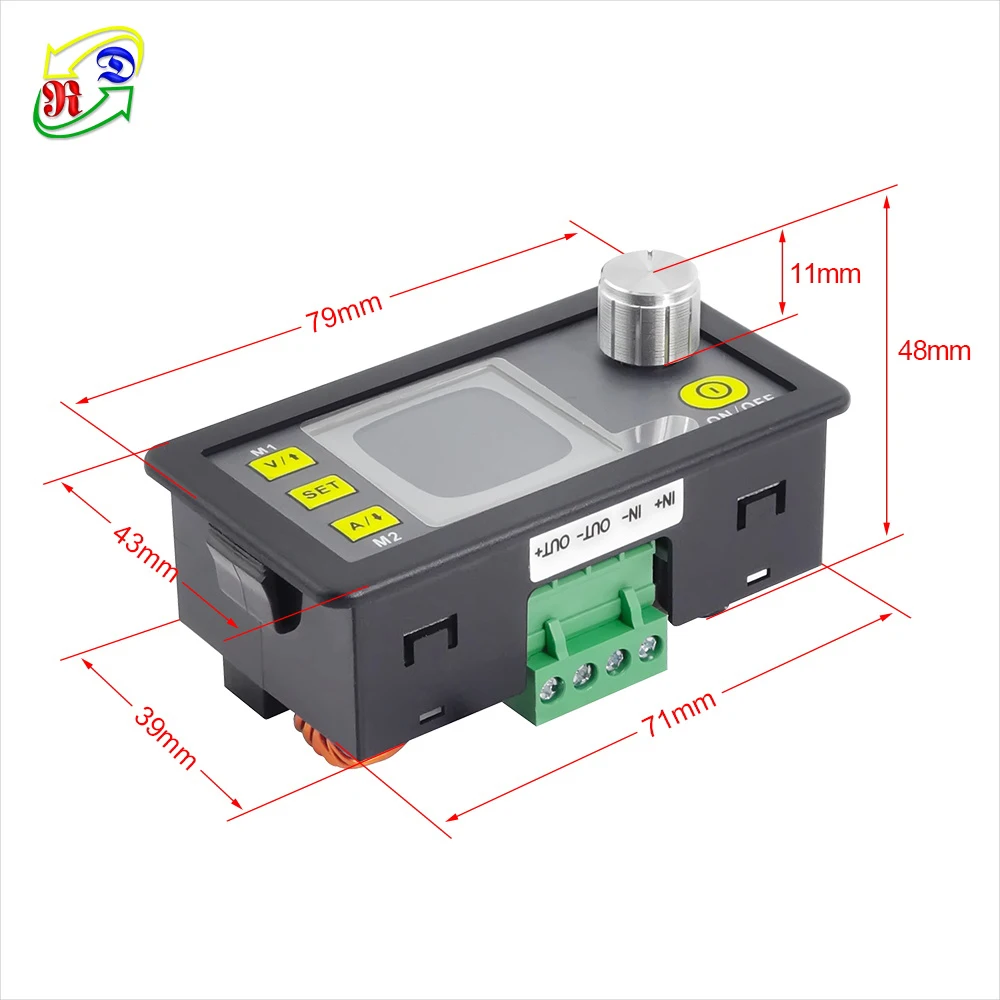

Technical parameters Input voltage range: 6.00-40.00V Output voltage range: 0V-32.00V Output current: 0-5.000A Output power range: 0-160.0W Product Weight: about 113g Product Dimension: 79*43*48(mm) (L*W*H) Open size: 71mm*39mm Output voltage resolution: 0.01V Output current resolution: 0.001A Output Voltage accuracy: ± (0.5% + 3 digits) Output Current accuracy: ± (0.5% + 5 digit) DPS3005 test video from customer DP30V5A test video from customer 1. https://www.youtube.com/watch?v=OkUWdxM_4pI&list=PLNcr2Rj_07PFfKZ5x1eNRPmagiOQ52bz7&index=2 DPS buck power supply series(DPS3003,DPS3005,DPS5005,DPS3012, DPS5015，DPS5020); DPH buck-boost power supply series (DPH3205 and DPH5005); If you want to see DP50V5A click this https://www.aliexpress.com/item/32596330856.html If you want to see DP30V5A click this https://www.aliexpress.com/item/32613371214.html If you want to see DP30V5A-L click this https://www.aliexpress.com/item/32639806678.html If you want to see DPS3003 click this https://www.aliexpress.com/item/32685187020.html If you want to see DPS3005 click this https://www.aliexpress.com/item/32684316119.html If you want to see DPS5005 click this https://www.aliexpress.com/item/1000004290003.html If you want to see DPS3012 click this https://www.aliexpress.com/item/32685179404.html If you want to see DPS5015 click this https://www.aliexpress.com/item/32702714880.html If you want to see DPS5020 click this https://www.aliexpress.com/item/32821185351.html If you want to see DPH3205 click this https://www.aliexpress.com/item/32762131242.html If you want to see DPH5005 click this https://www.aliexpress.com/item/32840324731.html If you want to see DPS8005 click this https://www.aliexpress.com/item/32849962454.html General Information IN+: Input positive IN-: Input negative: OUT+: Output positive: OUT-: Output negative Note: Input voltage range is DC 6-40V and 40v is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt. Panel description
2. https://www.youtube.com/watch?v=MFBfWC1qbUw&list=PLNcr2Rj_07PFfKZ5x1eNRPmagiOQ52bz7&index=8
3. https://www.youtube.com/watch?v=ptt931rrXo8&index=3&list=PLNcr2Rj_07PGOM4NtcTzEpZkTlOEkNfh7 The correlation table : DP series (DP50V5A and DP30V5A (Simple LED version DP30V5AL) ) ; Digital Power Supply related series of products:

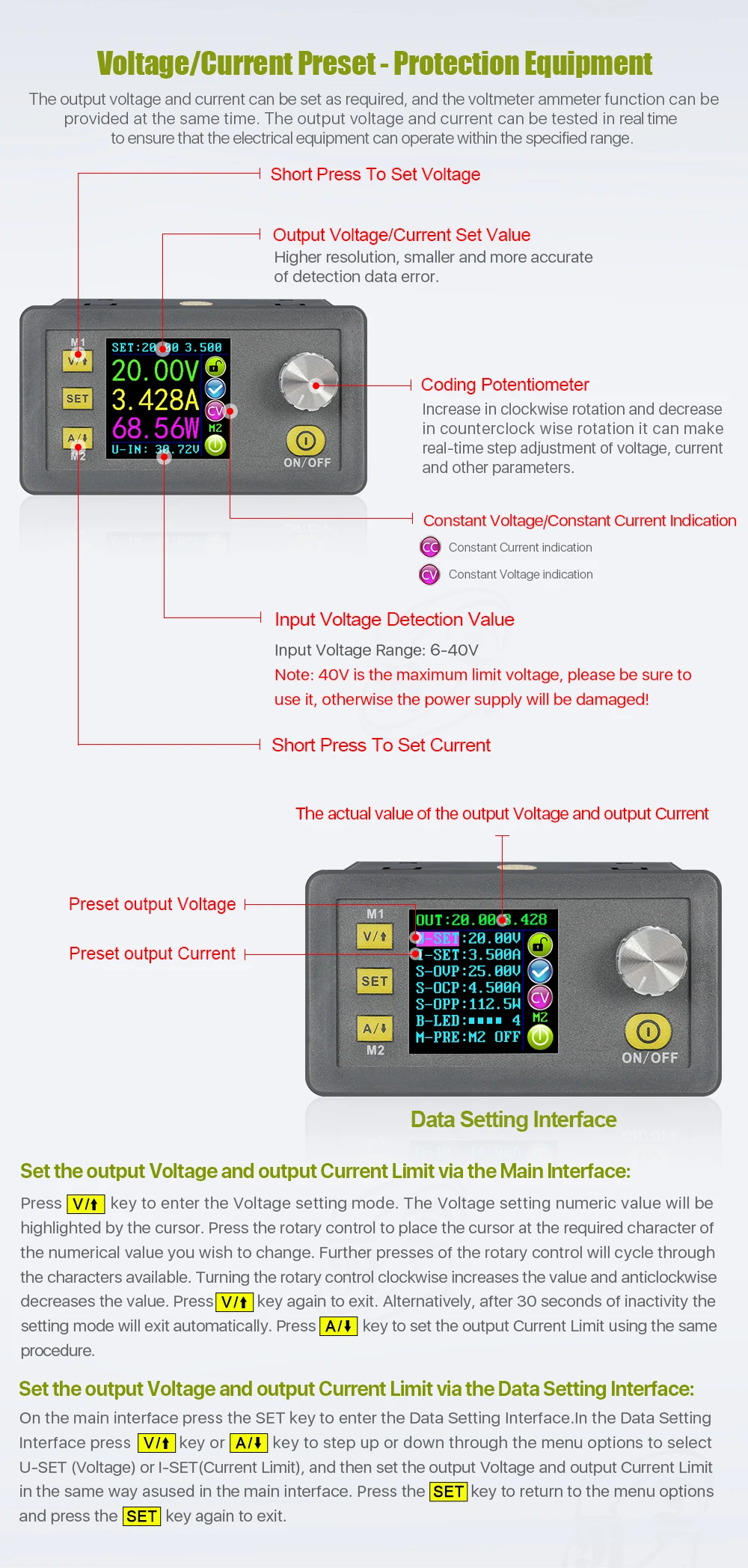

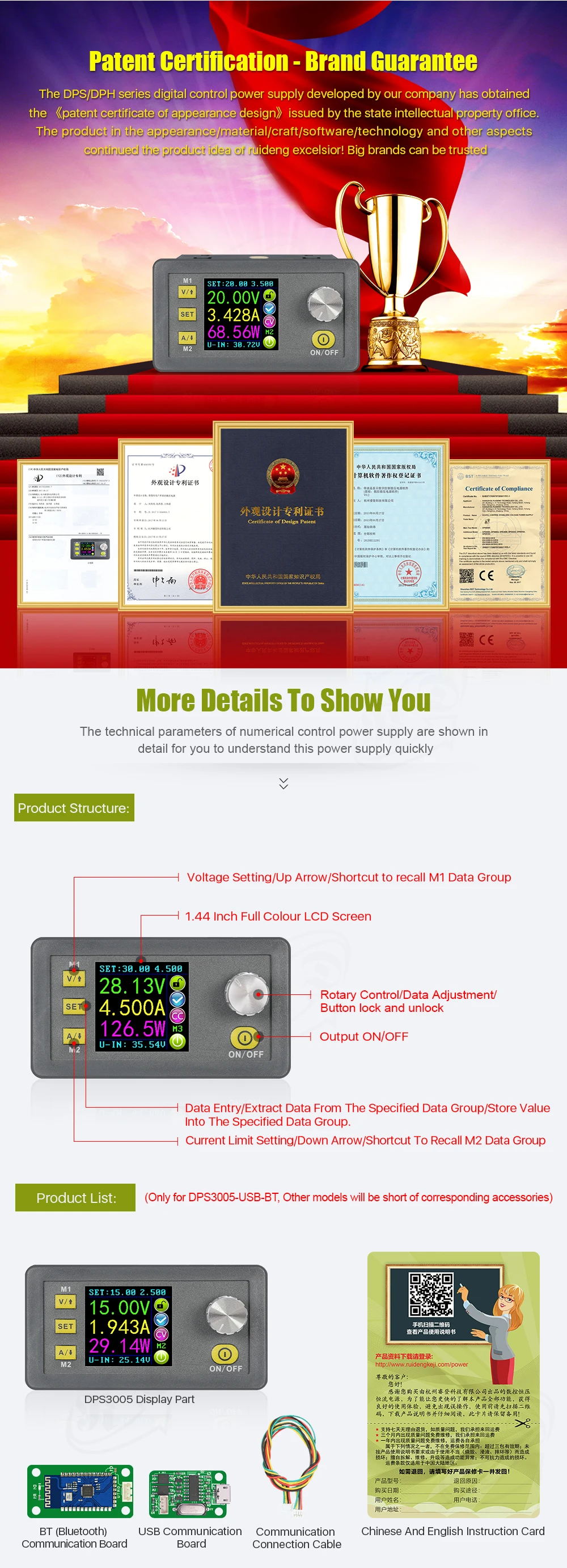

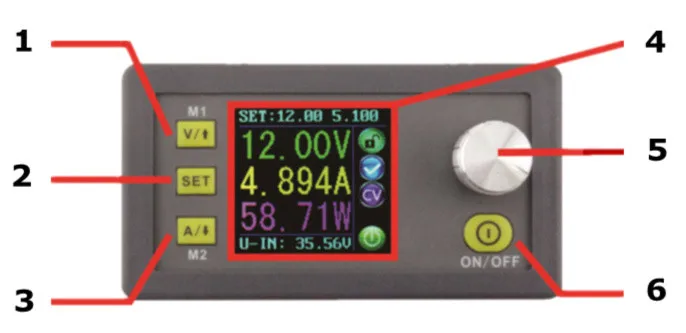

1-Voltage setting/Page up to choose/Shortcut extract M1 data group 2-Data setting/ Extract value of the specified data group/Store value into the specified data group 3-Current setting/Page Down to choose/Shortcut extract M2 data group 4-1.44 inch color LCD screen 5-Coding potentiometer/Data adjustment/Lock all buttons 6-Open or close output Display interface description

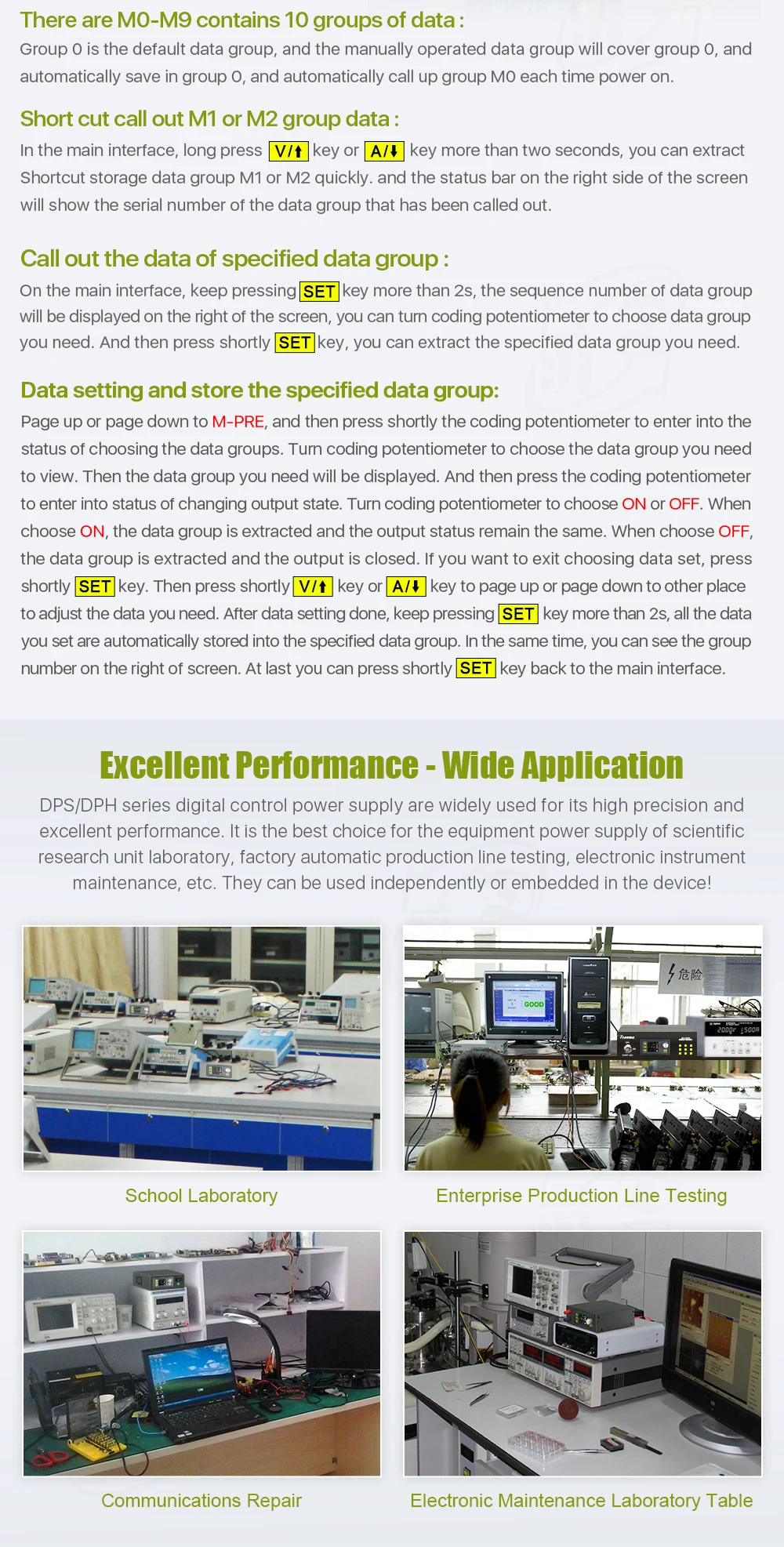

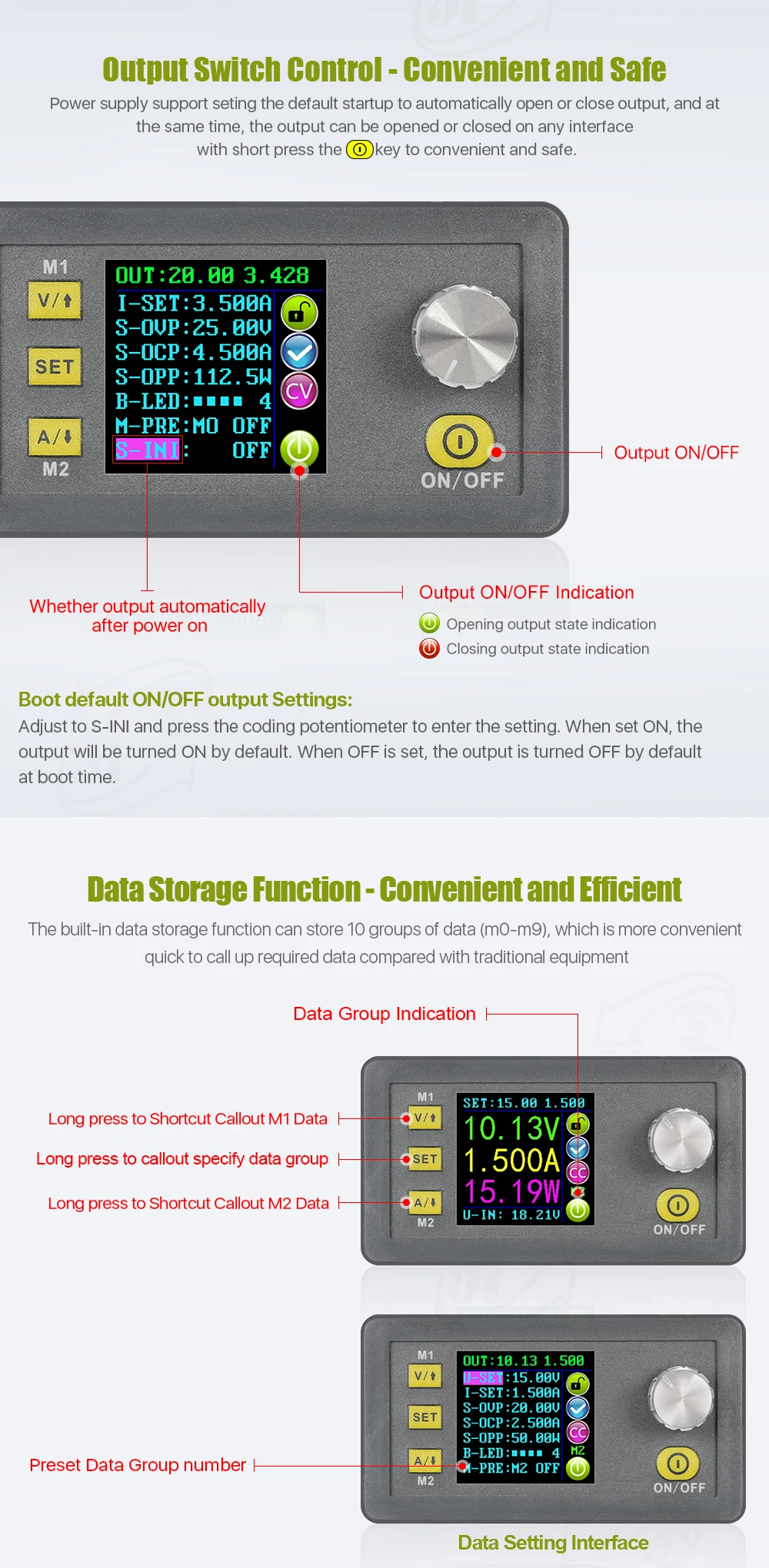

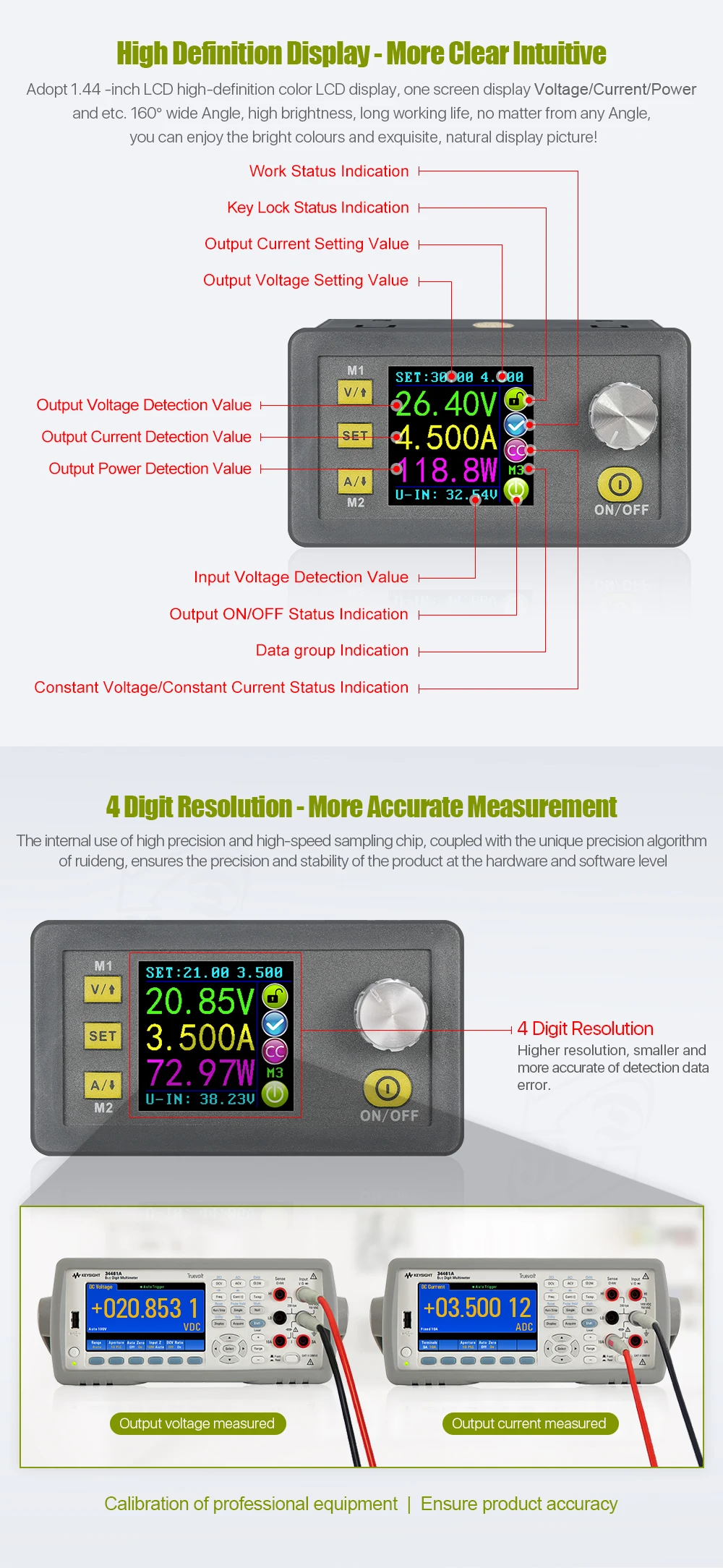

7-The preset value of output voltage 8- The actual value of output voltage 9-The actual value of output current 10-The actual value of output power 11-The actual value of input voltage 12-The preset value of output current 13-Key lock or unlock prompt 14-Output normal or not prompt 15-Constant voltage and constant current status prompt 16-Data set prompt 17-Open or close output prompt 18-Preset output voltage 19-Preset output current 20-Preset over- voltage 21-Preset over-current 22-Preset over-power 23-Preset screen brightness 24-Preset data set 25-The actual value of output voltage and output current Operating instructions When connect the power supply, the screen shows welcome window firstly and then comes into main interface. On the main interface, the output set voltage value and the output set current value is on the top of the screen. The big font value on the left are the current real output voltage, the current real output current and the current real output power. Input voltage is on the bottom of the screen. There are some running status icons on the right of the screen, key lock icon, abnormal output status icon, constant voltage and constant current icon, data set tip icon and opening or closing output icon. Set the output voltage and output current on the main interface. Press V/↑key shortly, you can enter into voltage setting status. Then press the coding potentiometer, and then enter to adjust the numerical value. Press coding potentiometer to enter into the status of adjusting the numerical value you want to adjust. Turn coding potentiometer to adjust the numerical value. Turn by clockwise rotation to increase the numerical value; Turn by counterclockwise to decrease the numerical value. If you want to exit adjusting the numerical value, press shortly V/↑. In the same time the preset value will be stored. Or you can do nothing in one minute, the status will be automatically existed and the preset will be stored too. You can press A/↓to set the output current by the same way. Set the data on the data setting interface On the main interface, you can press SET key shortly to enter into data setting interface. On the data setting interface, press shortly V/↑or A/↓ to page up or page down to U-SET or I-SET, and then set the output voltage and output current by same way used in the main interface . Set the protection value. Page up or page down to S-OVP, S-OCP or S-OPP place to set over-voltage value , over-current value and over-power value correspondingly; when the value is up to the setting value, output will be closed. And then press shortly the coding potentiometer to enter into the status of adjusting the numerical value you want to adjust. Turn coding potentiometer to adjust the numerical value. If you want to exit adjusting the numerical value, press shortly SET key. Adjust the brightness of screen. Page up or page down to B-LED, and then press shortly the coding potentiometer to enter into the status of adjusting the brightness of screen. Turn coding potentiometer to adjust the numerical value you need. If you want to exit adjusting the numerical value, press shortly SET key. There are six brightness levels of LCD screen, 0-5 level. Rank 0 is the darkest; rank 5 is the brightest. You can choose what you like. Data setting and store the specified data group. Page up or page down to M-PRE, and then press shortly the coding potentiometer to enter into the status of choosing the data groups. Turn coding potentiometer to choose the data group you need to view. Then the data group you need will be displayed. And then press the coding potentiometer to enter into status of changing output state. Turn coding potentiometer to choose ON or OFF. When choose ON, the data group is extracted and the output status remain the same. When choose OFF, the data group is extracted and the output is closed. If you want to exit choosing data set, press shortly SET key. Then press shortly V/↑or A/↓ to page up or page down to other place to adjust the data you need. After data setting done, keep pressing SET key more than 2s, all the data you set are automatically stored into the specified data group. In the same time, you can see the group number on the right of screen. At last you can press shortly SET key back to the main interface. Set default boot open or close output Page up or page down to S-INI, and then press shortly the coding potentiometer to enter into the setting status. Set ON, default boot open; set off, default boot close. Function description. Open or close the output. You can press ON/OFF key to open or close the output on any interface. Lock the button to avoid wrong operation. On the any interface, you can keep pressing coding potentiometer more than 2s, all buttons are locked. You can see the key lock icon on the right of screen. If you want to unlock all buttons, keep pressing coding potentiometer more than 2s, all buttons are unlocked. The key unlock icon will be displayed on the right of screen. M0-M9 ten groups data group M0 group is the boot default data group. When you extract the data group you need, this data group will cover M0 data group and be automatically stored on M0 data group. Extract Shortcut storage data group M1 or M2. On the main interface, keep pressing V/↑or A/↓ more than 2s, you can extract Shortcut storage data group M1 or M2 quickly. In the same time the corresponding data group number will displayed on the right of the screen. Extract the specified data group. On the main interface, keep pressing SET key more than 2s, the sequence number of data group will be displayed on the right of the screen, you can turn coding potentiometer to choose data group you need. And then press shortly SET key, you can extract the specified data group you need.
